Download Manuals & Spec Sheets

Choose a category to find your product’s documents.

Monitor Firmware Updates

Select Product

PX278 Wave [FW V2.2]
VERSION
FILE FORMAT
RELEASE DATE
RELEASE NOTES
  • V2.2
    .ZIP
    08/26/04
    • Fixes an issue where the screen may intermittently switch to RGB testing mode.
    Download Software
PX278 Wave [FW V1.5]
VERSION
FILE FORMAT
RELEASE DATE
RELEASE NOTES
  • V1.5
    .BIN
    04/13/25
    • Fixes an issue where the screen may intermittently switch to RGB testing mode.
    Download Software
PX248 Wave [FW V1.1]
VERSION
FILE FORMAT
RELEASE DATE
RELEASE NOTES
  • V1.1
    .BIN
    03/13/25
    • Updated OSD design for easier navigation
    • The Flicker-Free function has been removed from the OSD menu, but it remains permanently ON and activated
    • Updated Crosshair style
    • Preset settings updated
    • Added user data, timer, and FPS counter functions
    • Added "Traditional Chinese" to the language options
    • Resolved an issue where the monitor would not power on when rebooting from PS5 standby mode
    Download Software
PX278 [FW V1.5]
VERSION
FILE FORMAT
RELEASE DATE
RELEASE NOTES
PX277 Pro [FW V1.1]
VERSION
FILE FORMAT
RELEASE DATE
RELEASE NOTES
  • V1.1
    .ZIP
    11/22/08
    • DDC/CI Function added
    • OverDrive now has 4 options: Balance, Low, Middle, and High
    • Fixed HDR Sharpness bug

    MPRT (Motion Picture Response Time)

    • DDC/CI is ON and MPRT is ON, DDC/CI grayscale processing is automatically enabled.
    • MPRT is turned OFF, DDC/CI is automatically re-enabled.

    Note: MPRT is automatically disabled when brightness is adjusted while MPRT is active. This is expected behavior based on current OSD logic.

    HDR (High Dynamic Range)

    • With DDC/CI ON and HDR ON, the following settings are grayed out and unadjustable via the OSD:

    - Brightness
    - Contrast
    - Black Equalizer

    • Even if changes are made through DDC/CI software, they will not reflect on the OSD interface.

    DCR (Dynamic Contrast Ratio)

    • DDC/CI ON and DCR ON, both Brightness and Contrast become grayed out in software.
    • RGB settings can still be adjusted normally.

    Preset Modes & DDC/CI

    • User), the OSD will automatically switch back to the User preset.

    Overdrive Behavior

    • Overdrive is set to “Balance”:
    • At refresh rates below 120Hz, it behaves the same as Overdrive Off.
    • At refresh rates above 120Hz, it functions like Overdrive Low.
    Download Software

Update Instructions

Before Your Start

Firmware updates are not required for most users.

Only install an update if:

  • You are experiencing a specific issue
  • Pixio support has recommended it

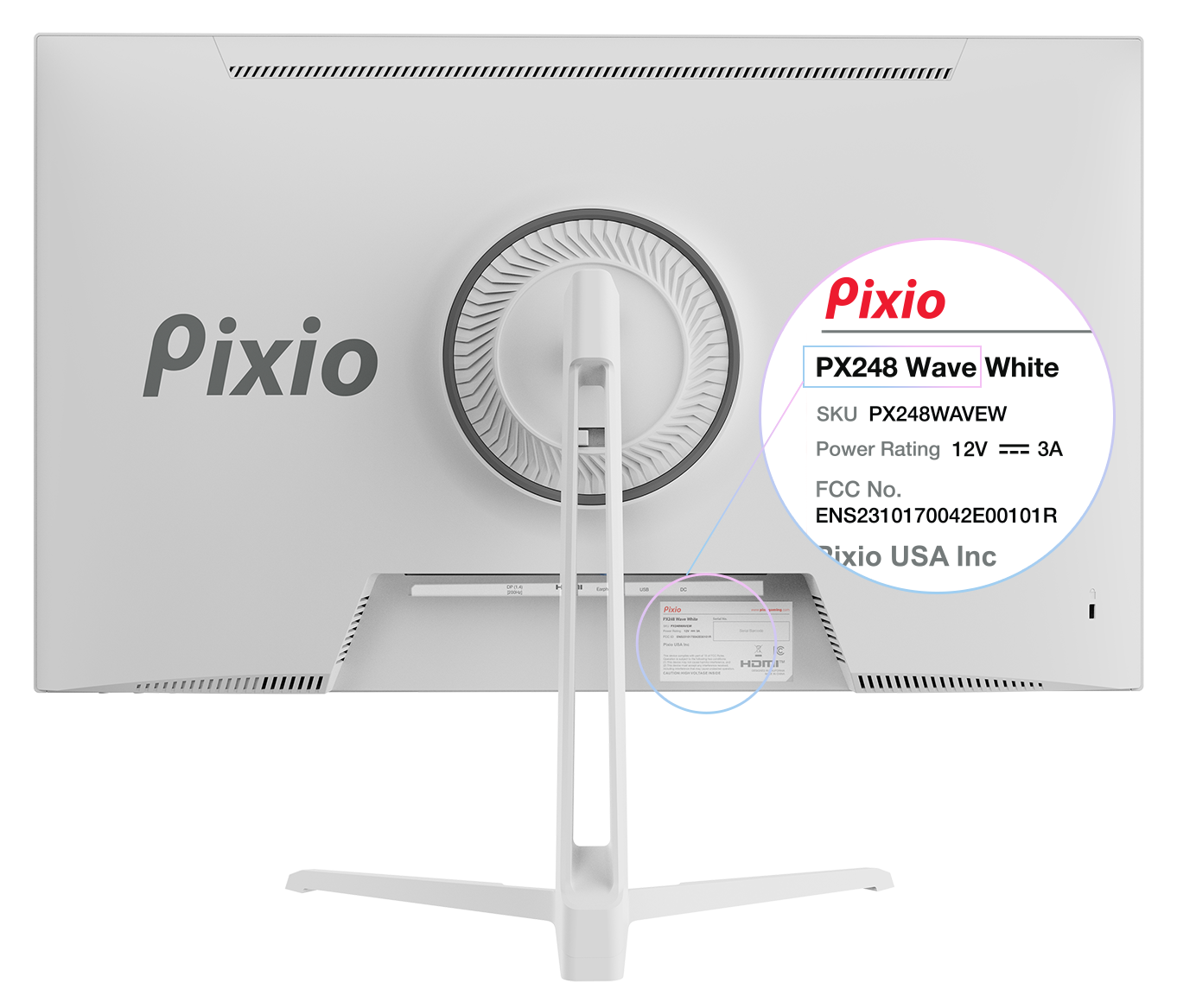

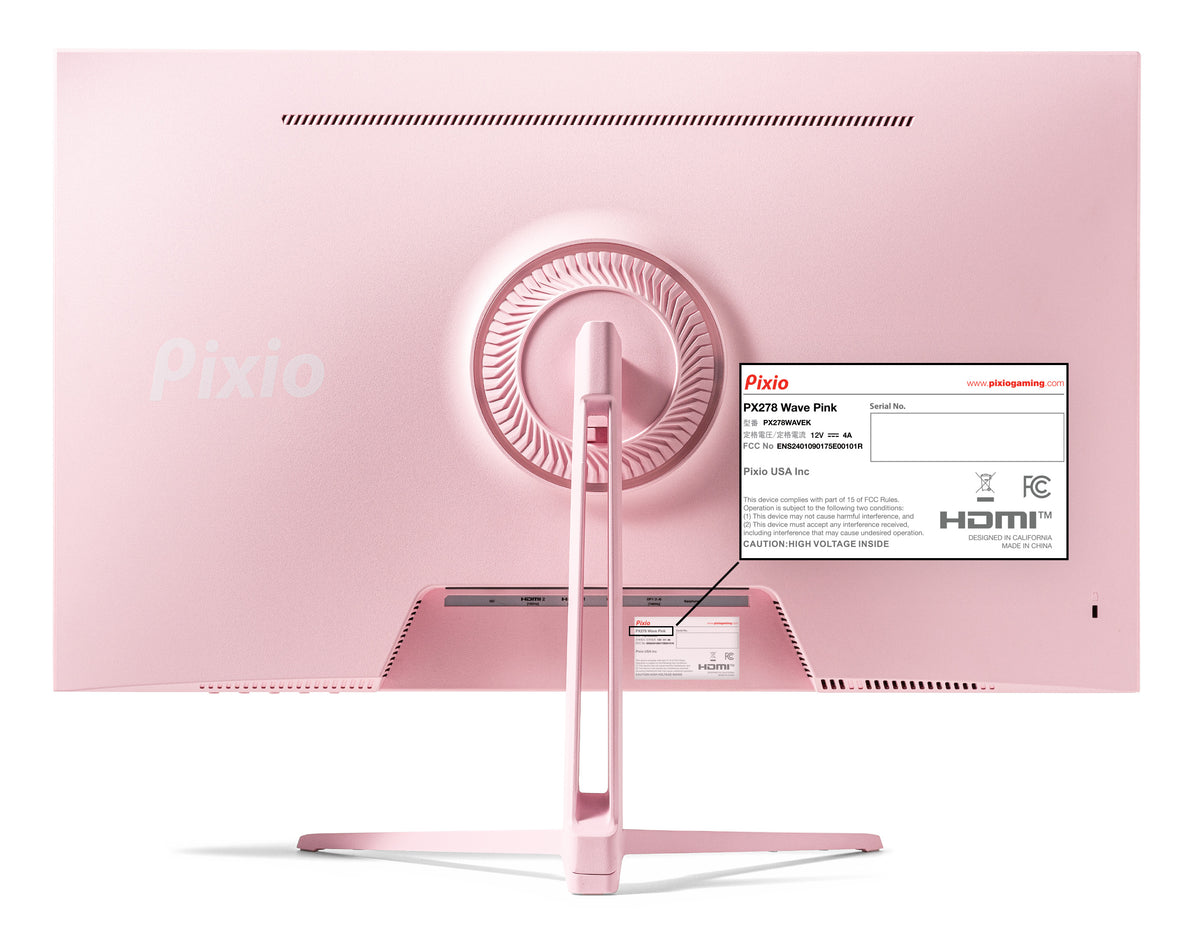

Before downloading, confirm that the firmware matches your monitor's SKU number. Installing incorrect firmware may cause issues with your device.

Updating firmware incorrectly or interrupting the process may also cause issues.

Download & Update Instructions
  1. After clicking "Download Firmware," a "MERGE.bin" file will download. Use this file for the firmware update.
  2. Before transferring the file, format your USB drive to FAT32.
  3. Place only one .bin file in the root directory of the USB drive. Do not include any other .bin files.
  4. If you see the message "No update files found on your USB device. Please check your USB device and try again," this may be due to the following reasons:A USB drive is not connected to the USB portThe files on the USB drive are in an incompatible formatThere are no valid update files on the USB drive (no update files saved, or the file name is incorrect)
  5. Do not turn off your monitor until the update is complete. Avoid any interruptions during the process. If an update is interrupted, the monitor will generally revert to the previous firmware version.
  6. If your screen blinks green during the USB update while using a DVI-HDMI converter, this is normal and not a monitor defect. The update is proceeding as expected — wait until it is complete.

StreamCube Downloads

To keep your product up to date, please visit the StreamCube's Support Page.
